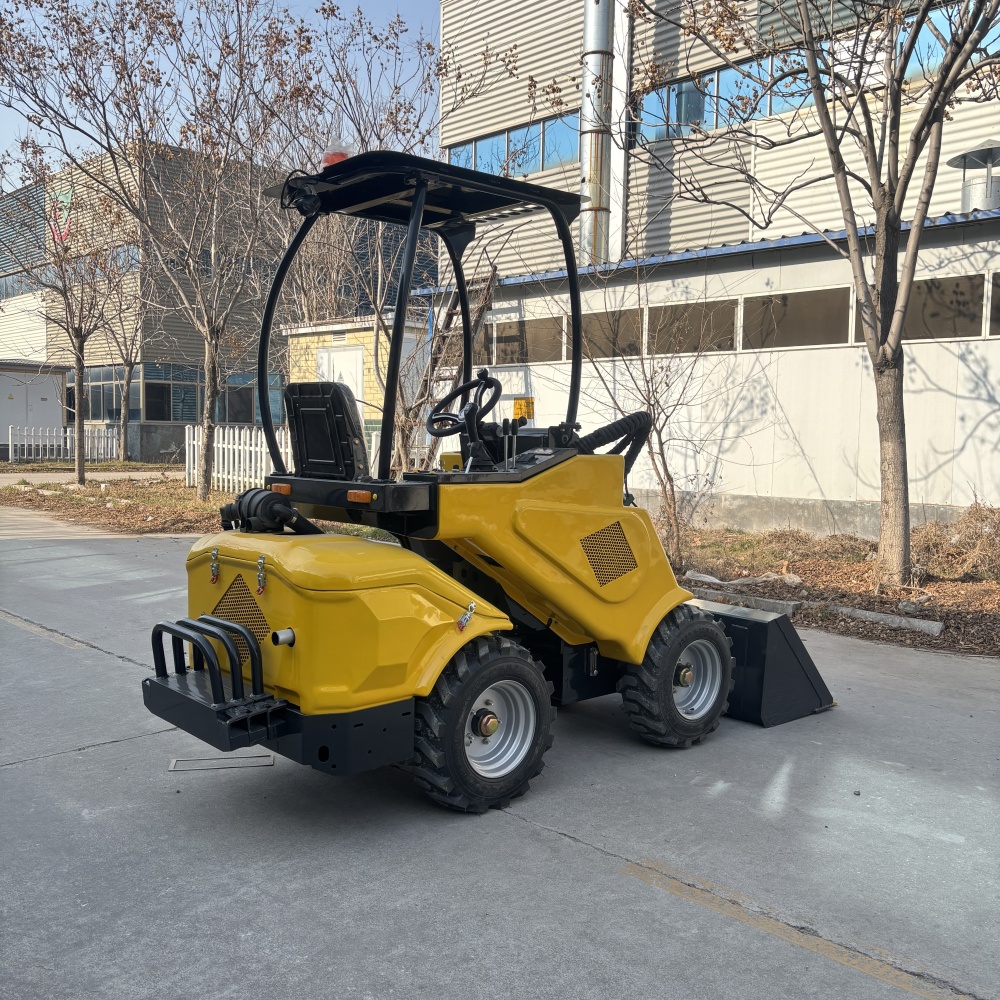

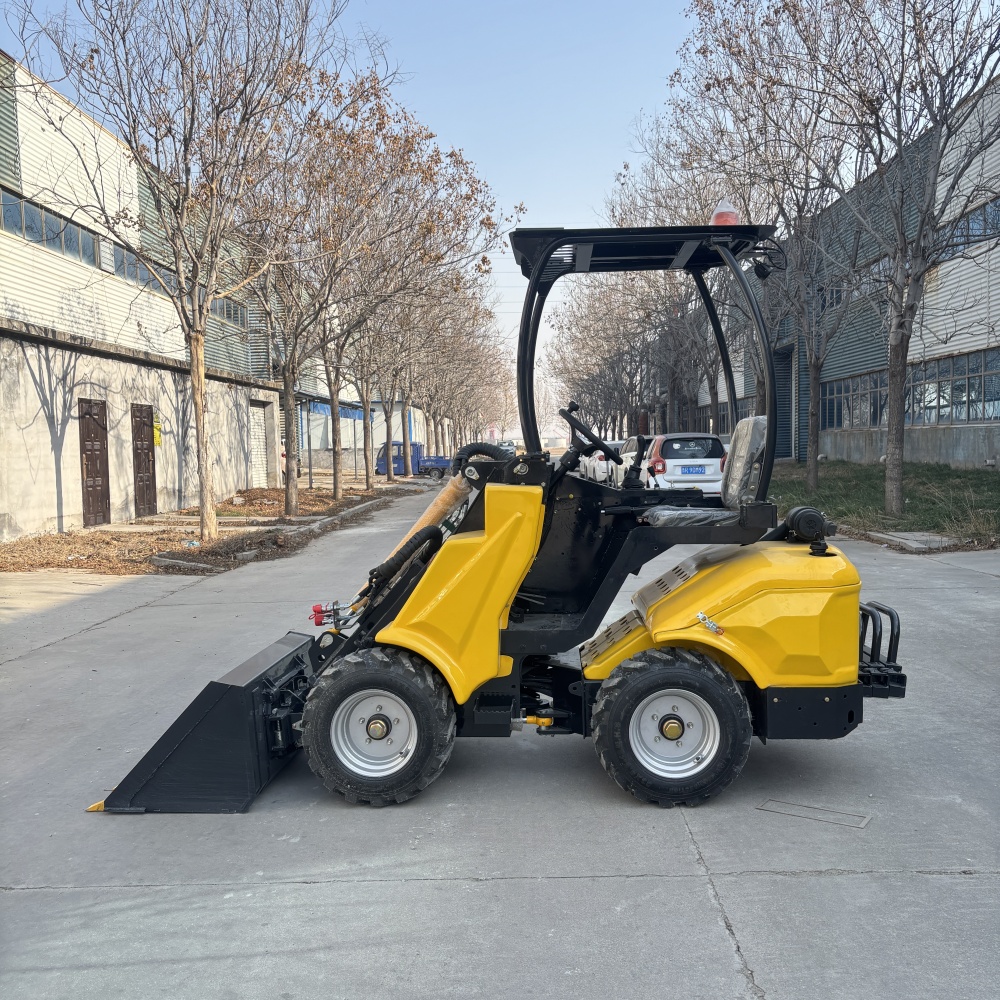

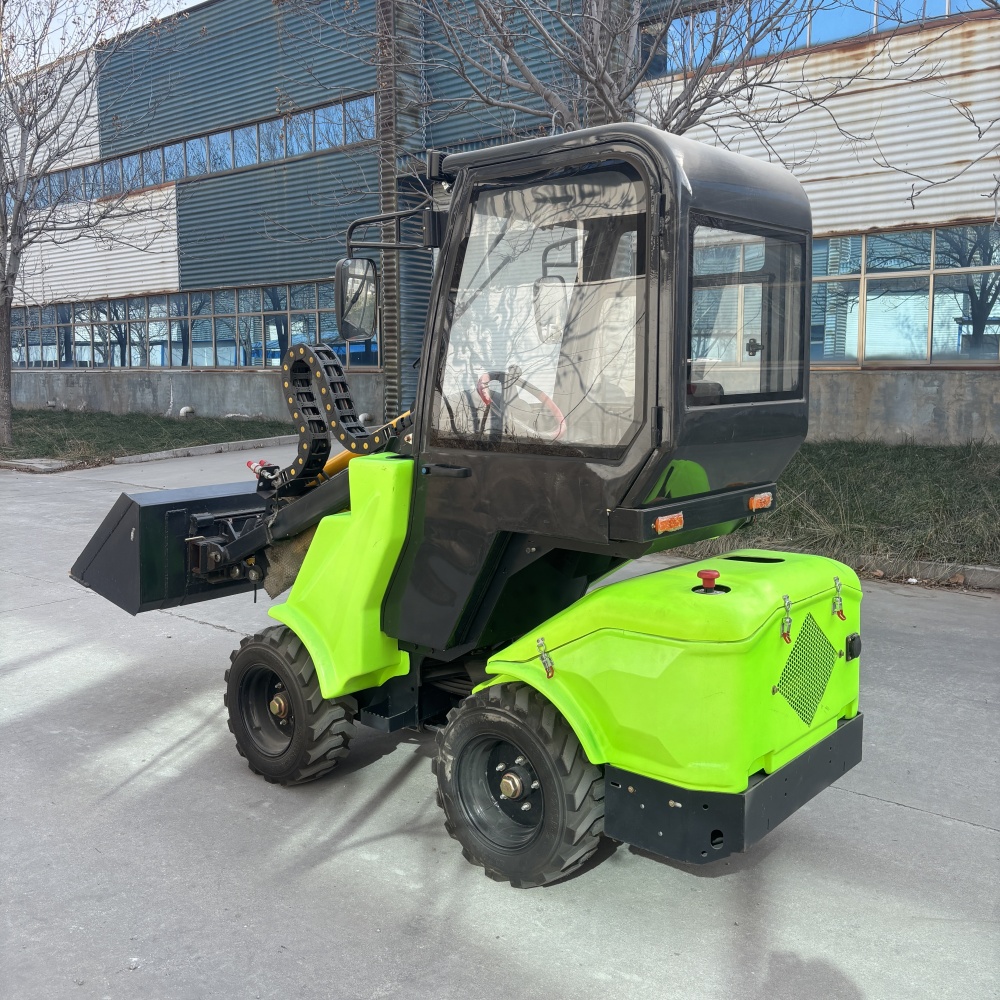

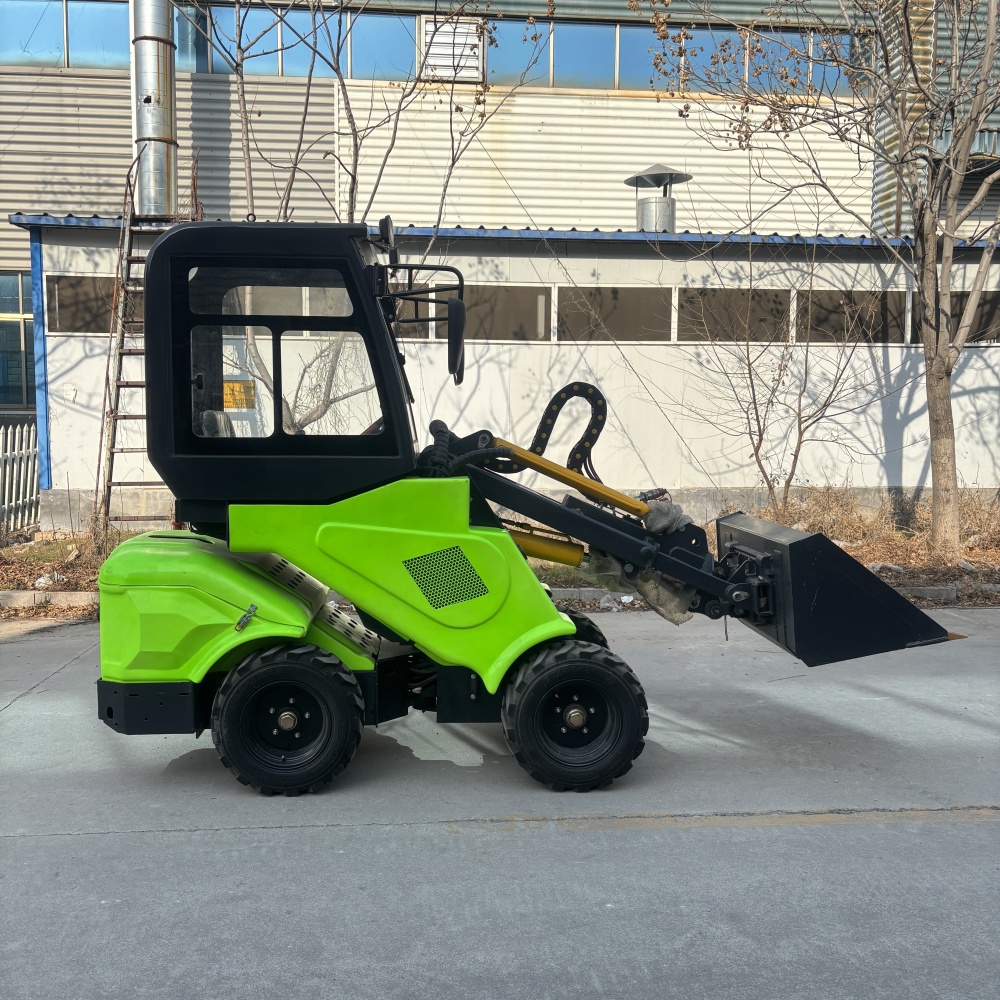

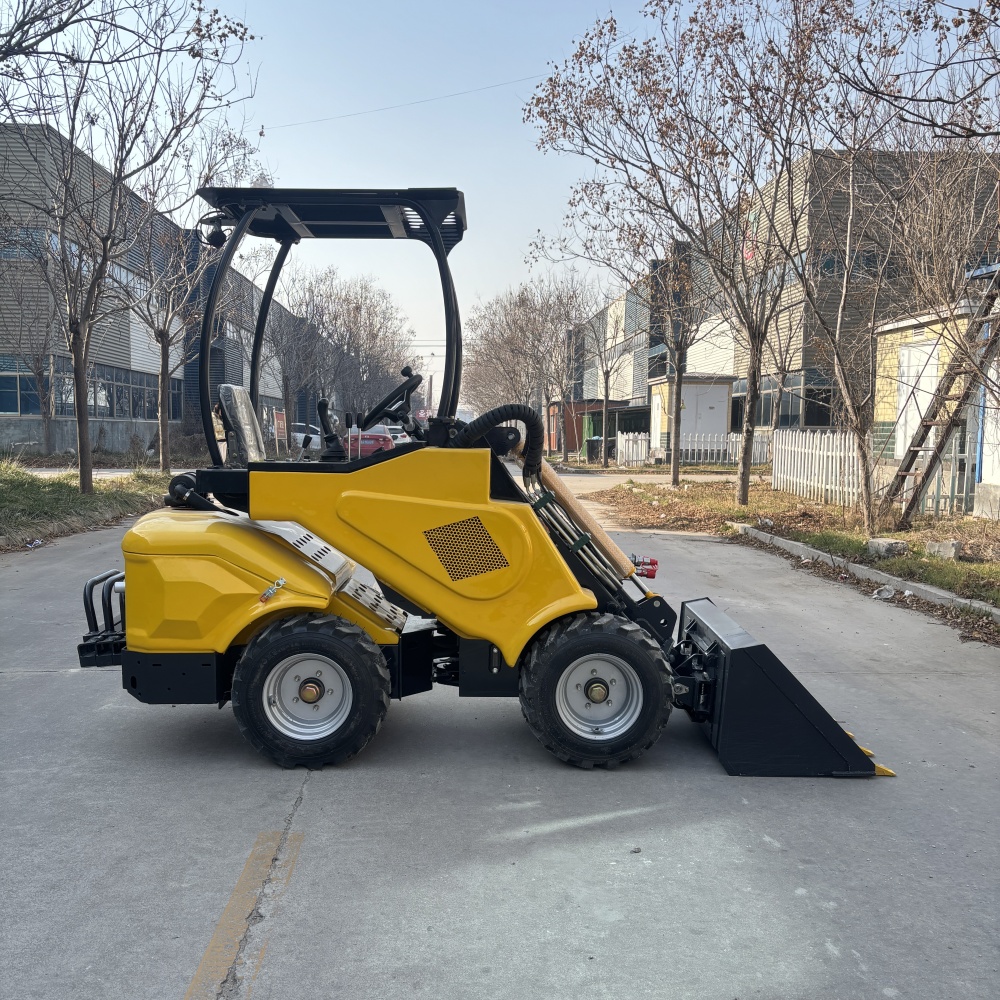

M550
Ultra-compact Wheel Loader
The AK550 telescopic loader equipped with Kubota engine, Italy PWG driving pump systerm and 4 x hydraulic motors make its performance more stable. The absence of swinging hinges makes the whole machine easier to operate, with greater lifting capacity and higher stability. And the compact dimensions and good maneuverability allow working in a large variety of environments.
Kubota Euro5&EPA4 Engine
Equipped with 3 cylinder Kubota D1105 water cooled diesel engine, 18.2kW.
PWG hydraulic pump (Made in Italy)
Using Italian PWG system, the stability and work efficiency of the system are improved.
Telescopic arm
The telescopic arm makes AK550 possible to have an excellent outreach and lift capacity.
No swinging hinge
The seat frame is connected to the front frame, reducing the turning radius and enhancing the stability of the entire
machine.
Electrical park brake
It is safer and easier to operate than traditional pull rod handbrakes, and the braking effect will not change due to
the driver's force.
Closed auxiliary pipeline
The use of enclosed auxiliary pipelines can better prevent dust and provide protection.
4WD motor with differential lock
Adopting Poclain drive motor with differential lock, it’s easy to get out of slippery or muddy roads.
High-low speed
with double speed: drive speed even 19 km/h.
Front work lights LED
It makes nighttime vision clearer and operation safer.
Rear view mirror
Expanded the driver's field of vision, allowing for clear visibility of the rear, sides, and lower areas.
Adjustable luxury seat
Adjustable seat makes driver operation more comfortable.
|
Performance |
Rated loading (kg) |
550 |
|
Overall weight (kg) |
1200 |
|
|
Rated bucket capacity (CBM) |
0.25 |
|
|
Max. dump height of main boom (mm) |
1672 |
|
|
Max. dump reach of main boom (mm) |
413 |
|
|
Max. dump height of small boom (mm) |
2147 |
|
|
Max. dump reach of small boom (mm) |
780 |
|
|
Overall dimension (L×W×H) (mm) |
3372*1200*2081 |
|
|
Min. turning radius |
2272 |
|
|
Max. steering angle |
40° |
|
|
Engine |
Model |
KUBOTA D1105 |
|
Type |
lnline water cooled, four stroke |
|
|
No. of cylinder-bore/stroke (mm) |
3—78×78.4 |
|
|
Displacement (L) |
1.123 |
|
|
Rated power(kW) |
18.2 |
|
|
Idel speed (r/min) |
850-950 |
|
|
Rated speed (r/min) |
3220 |
|
|
Maximum torque N.m @speed r/min |
||
|
Transmission system |
Driving pump type |
Closed piston pump |
|
Driving motor type |
Piston |
|
|
Gear shift |
2， Electric, Stepless |
|
|
Speeds |
10/19km/h |
|
|
Drive axles |
Wheel base (mm) |
1236 |
|
Wheel tread (mm) |
890 |
|
|
Ground clearance (mm) |
150 |
|
|
Hydraulic system |
System working pressure (Mpa) |
21 |
|
Boom lifting time (s) |
3.2 |
|
|
Total time (s) |
7.3 |
|
|
Fuel tank capacity (L) |
32 |
|
|
Brake system |
service brake |
Hydrostatic brake |
|
Parking brake |
Brake hold |
|
|
Tyre |
Type specification |
23*10.50-12 |
|
Front tyre pressure (kPa) |
310 |
|
|
Rear tyre pressure (kPa) |
310 |
